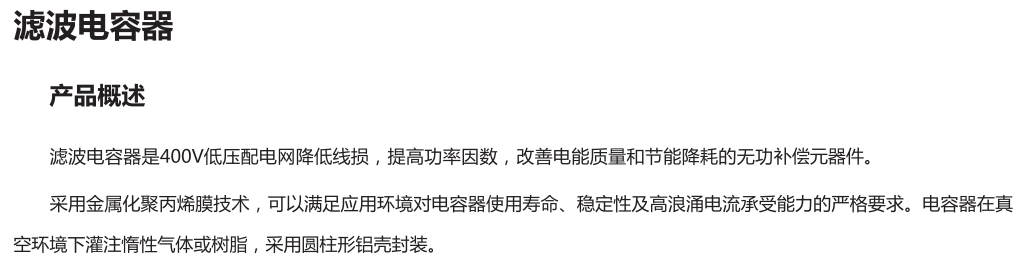

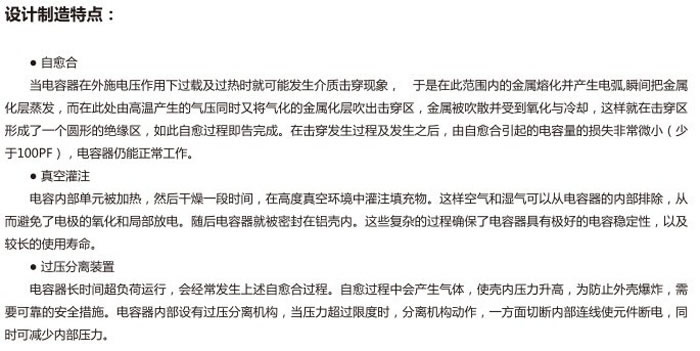

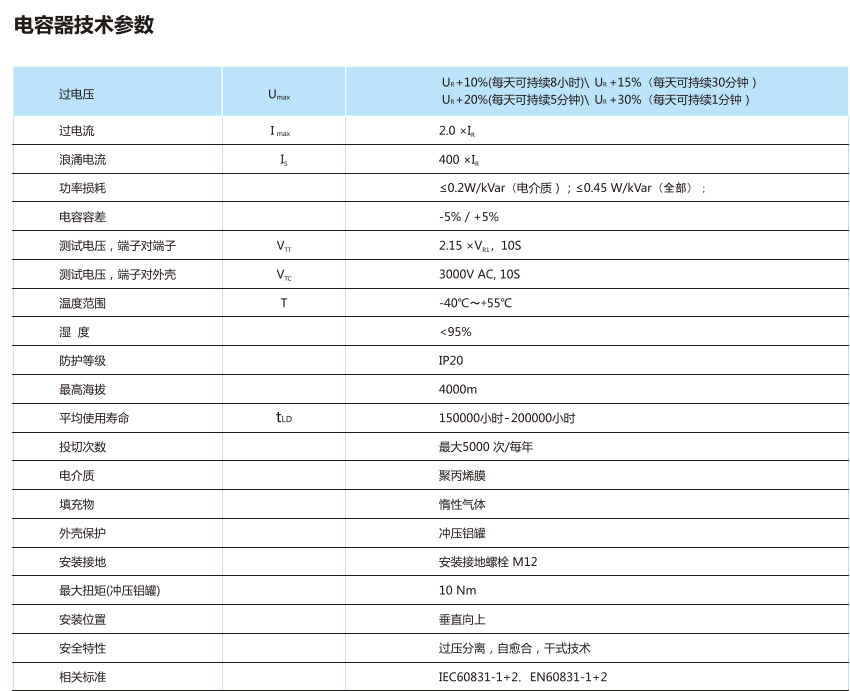

单相电容器规格参数一览表
额定电压250V AC，50Hz
|
型号规格 |
电压 |
50Hz |
电流 |
D×H |
产品代码 |
|
|
|
V |
容量kVar |
CR μF |
IR A |
mm |
|
|
FUMK250-5-1 |
250 |
5.0 |
255 |
20.0 |
76×175 |
B250N050IPL |
|
FUMK250-7.5-1 |
250 |
7.5 |
382 |
30.0 |
76×240 |
B250N075IPL |
|
FUMK250-10-1 |
250 |
10.0 |
510 |
40.0 |
86×240 |
B250N100IPL |
|
FUMK250-15-1 |
250 |
15.0 |
764 |
60.0 |
106×240 |
B250N150IPL |
三相电容器规格参数一览表
额定电压400V AC，50Hz，三角形连接
|
型号规格 |
电压 |
50Hz |
电流 |
D×H |
产品代码 |
||
|
|
V |
容量kVar |
CR μF |
IR A |
mm |
|
|
|
FUMK400-5-3 |
400 |
5.0 |
99 |
7.2 |
76×175 |
B400D050IPH |
|
|
FUMK400-7.5-3 |
400 |
7.5 |
149 |
10.8 |
76×240 |
B400D075IPH |
|
|
FUMK400-10-3 |
400 |
10.0 |
199 |
14.4 |
76×240 |
B400D100IPH |
|
|
FUMK400-12-3 |
400 |
12.0 |
239 |
17.3 |
86×240 |
B400D120IPH |
|
|
FUMK400-15-3 |
400 |
15.0 |
299 |
21.7 |
96×240 |
B400D150IPH |
|
|
FUMK400-20-3 |
400 |
20.0 |
398 |
28.9 |
106×240 |
B400D200IPH |
|
FUMK400-25-3 |
400 |
25.0 |
498 |
36.1 |
116×240 |
B400D250IPH |
|
|
FUMK400-30-3 |
400 |
30.0 |
597 |
43.3 |
116×285 |
B400D300IPH |
|
|
FUMK400-35-3 |
400 |
35.0 |
697 |
50.5 |
136×240 |
B400D350IPH |
|
|
FUMK400-40-3 |
400 |
40.0 |
796 |
57.7 |
136×285 |
B400D400IPH |
|
|
FUMK400-45-3 |
400 |
45.0 |
896 |
65.0 |
136×285 |
B400D450IPH |
|
|
FUMK400-48-3 |
400 |
48.0 |
955 |
69.3 |
136×285 |
B400D480IPH |
|
|
额定电压440V AC，50Hz，三角形连接 |
|||||||
|
型号规格 |
电压 |
50Hz |
电流 |
D×H |
产品代码 |
||
|
|
V |
容量kVar |
CR μF |
IR A |
mm |
|
|
|
FUMK440-5-3 |
440 |
5.0 |
82 |
6.6 |
76×175 |
B440D050IPH |
|
|
FUMK440-7.5-3 |
440 |
7.5 |
123 |
9.8 |
76×175 |
B440D075IPH |
|
|
FUMK440-10-3 |
440 |
10.0 |
165 |
13.1 |
76×240 |
B440D100IPH |
|
|
FUMK440-12-3 |
440 |
12.0 |
197 |
15.7 |
86×240 |
B440D120IPH |
|
|
FUMK440-15-3 |
440 |
15.0 |
247 |
19.7 |
96×240 |
B440D150IPH |
|
|
FUMK440-20-3 |
440 |
20.0 |
329 |
26.2 |
106×240 |
B440D200IPH |
|
|
FUMK440-25-3 |
440 |
25.0 |
411 |
32.8 |
106×240 |
B440D250IPH |
|
|
FUMK440-30-3 |
440 |
30.0 |
494 |
39.4 |
116×285 |
B440D300IPH |
|
|
FUMK440-45-3 |
440 |
45.0 |
740 |
59.0 |
136×240 |
B440D450IPH |
|
|
FUMK440-50-3 |
440 |
50.0 |
823 |
65.6 |
136×285 |
B440D500IPH |
|
|
额定电压480V AC，50Hz，三角形连接 |
|||||||
|
型号规格 |
电压 |
50Hz |
电流 |
D×H |
产品代码 |
||
|
|
V |
容量kVar |
CR μF |
IR A |
mm |
|
|
|
FUMK480-5-3 |
480 |
5.0 |
69 |
6.0 |
76×175 |
B480D050IPH |
|
|
FUMK480-7.5-3 |
480 |
7.5 |
104 |
9.0 |
76×175 |
B480D075IPH |
|
|
FUMK480-10-3 |
480 |
10.0 |
138 |
12.0 |
76×240 |
B480D100IPH |
|
|
FUMK480-12-3 |
480 |
12.0 |
166 |
14.4 |
86×240 |
B480D120IPH |
|
|
FUMK480-15-3 |
480 |
15.0 |
207 |
18.0 |
86×240 |
B480D150IPH |
|
|
FUMK480-20-3 |
480 |
20.0 |
277 |
24.1 |
106×240 |
B480D200IPH |
|
|
FUMK480-25-3 |
480 |
25.0 |
346 |
30.1 |
116×240 |
B480D250IPH |
|
|
FUMK480-30-3 |
480 |
30.0 |
415 |
36.1 |
116×285 |
B480D300IPH |
|
|
FUMK480-33-3 |
480 |
33.0 |
456 |
39.7 |
116×285 |
B480D330IPH |
|
|
FUMK480-40-3 |
480 |
40.0 |
553 |
48.1 |
136×240 |
B480D400IPH |
|
|
FUMK480-45-3 |
480 |
45.0 |
622 |
54.1 |
136×285 |
B480D450IPH |
|
|
FUMK480-50-3 |
480 |
50.0 |
691 |
60.1 |
136×285 |
B480D500IPH |
|
|
额定电压525V AC，50Hz，三角形连接 |
|||||||
|
型号规格 |
电压 |
50Hz |
电流 |
D×H |
产品代码 |
||
|
|
V |
容量kVar |
CR μF |
IR A |
mm |
|
|
|
FUMK525-5-3 |
525 |
5.0 |
58 |
5.5 |
76×175 |
B525D050IPH |
|
|
FUMK525-7.5-3 |
525 |
7.5 |
87 |
8.2 |
76×240 |
B525D075IPH |
|
|
FUMK525-10-3 |
525 |
10.0 |
116 |
11.0 |
76×240 |
B525D100IPH |
|
|
FUMK525-12-3 |
525 |
12.0 |
139 |
13.2 |
86×240 |
B525D120IPH |
|
|
FUMK525-15-3 |
525 |
15.0 |
173 |
16.5 |
96×240 |
B525D150IPH |
|
|
FUMK525-20-3 |
525 |
20.0 |
231 |
22.0 |
106×240 |
B525D200IPH |
|
|
FUMK525-25-3 |
525 |
25.0 |
289 |
27.5 |
116×240 |
B525D250IPH |
|
|
FUMK525-30-3 |
525 |
30.0 |
347 |
33.0 |
116×285 |
B525D300IPH |
|
|
FUMK525-35-3 |
525 |
35.0 |
404 |
38.5 |
136×240 |
B525D350IPH |
|
|
FUMK525-37.5-3 |
525 |
37.5 |
435 |
41.0 |
136×240 |
B525D375IPH |
|
|
FUMK525-40-3 |
525 |
40.0 |
462 |
44.0 |
136×240 |
B525D400IPH |
|
|
FUMK525-45-3 |
525 |
45.0 |
520 |
49.5 |
136×285 |
B525D450IPH |
|
|
FUMK525-50-3 |
525 |
50.0 |
578 |
55.0 |
136×285 |
B525D500IPH |
|
|
额定电压690V AC，50Hz，三角形连接 |
|||||||
|
型号规格 |
电压 |
50Hz |
电流 |
D×H |
产品代码 |
||
|
|
V |
容量kVar |
CR μF |
IR A |
mm |
|
|
|
FUMK690-5-3 |
690 |
5.0 |
33 |
4.2 |
76×175 |
B690D050IPH |
|
|
FUMK690-7.5-3 |
690 |
7.5 |
50 |
6.3 |
76×240 |
B690D075IPH |
|
|
FUMK690-10-3 |
690 |
10.0 |
67 |
8.4 |
76×240 |
B690D100IPH |
|
|
FUMK690-12-3 |
690 |
12.0 |
80 |
10.0 |
86×240 |
B690D120IPH |
|
|
FUMK690-15-3 |
690 |
15.0 |
100 |
12.6 |
96×240 |
B690D150IPH |
|
|
FUMK690-20-3 |
690 |
20.0 |
134 |
16.7 |
106×240 |
B690D200IPH |
|
|
FUMK690-25-3 |
690 |
25.0 |
167 |
20.9 |
106×240 |
B690D250IPH |
|
|
FUMK690-30-3 |
690 |
30.0 |
201 |
25.1 |
116×285 |
B690D300IPH |
|

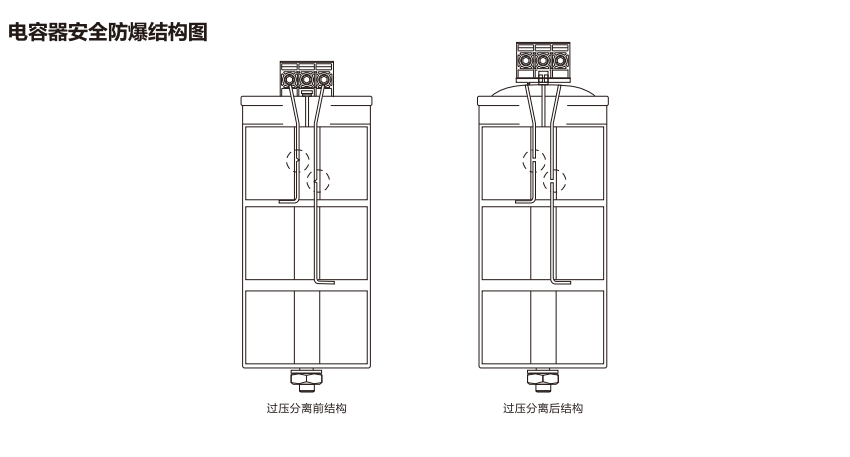

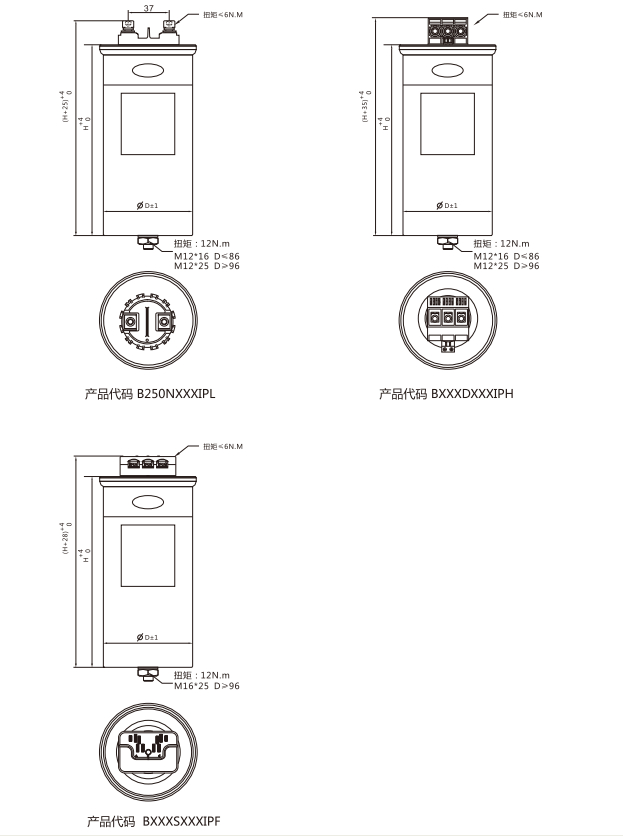

电容器外形尺寸图
